Fully Automatic lollipop making Machine with Jam Filling

FOB Reference Price:Get Latest Price
US $10,000-100,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GAOCHENG
Model Number:
QB-528
Application:
Candy
Voltage:
380V
Power(W):
11.44K
Weight:
3000kg
Dimension(L*W*H):
8600*1200*1800
Certification:
CE
Warranty:
1year
After-sales Service Provided:
Engineers available to service machinery overseas
key word:
Fully Automatic lollipop making Machine with Jam Filling
Supply Ability
Supply Ability:
1 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
SHANGHAI PORT
Lead Time :
40days

Fully Automatic lollipop making Machine with Jam Filling

Product Description



Main performance



1,Adopt frequency converter,make the plant work consistently.



2,Forming mould use pressing board type,ensure the candy forms satiation,and stick position accurate.



3,Use the waggling sieve to cool and convey lollipop,avoid the candy shape from distortion and stick accurate.

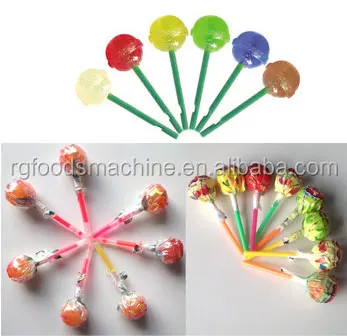

Finished products



.jpg

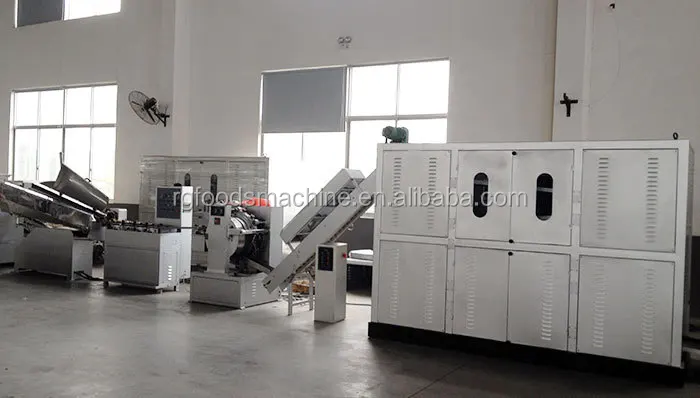

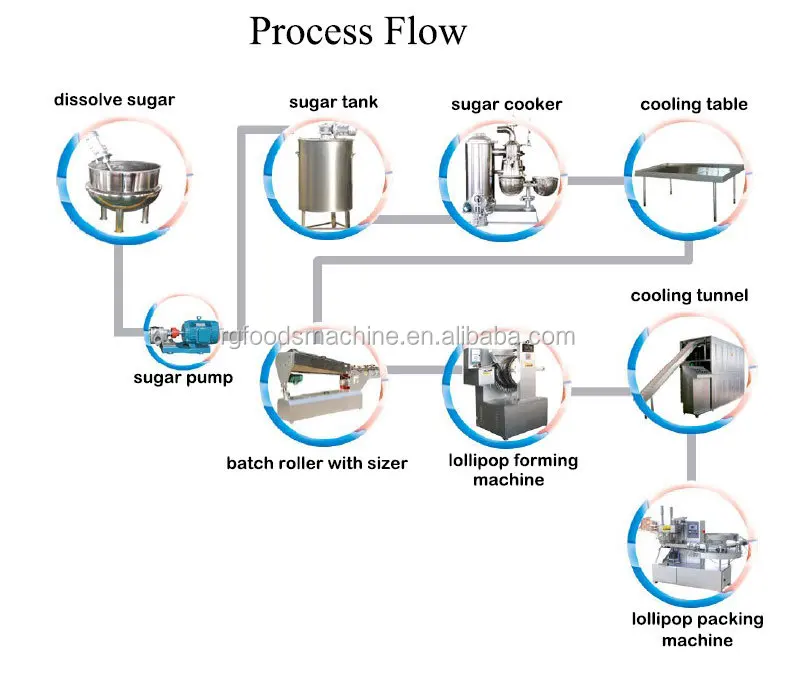

 Whole production line



      single machine list

numbernamequantityremark
1dissolve tank2 set
2syrup pump1 set
3storage cauldron1 set
4continuous vacuum cooker1 set400kg/h
5cooling table1 set



6heat-proof pulling machine1 set
7lollipop forming machine1 set400kg/h
8cooling tunnel1 set
9lollipop packing machine4 set130pcs/min

    The capacity of the line is 400kg/h.Take φ 25 lollipop as standard,the weight of a lollipop is about 12g,the capacity is 500pcs-800pcs.

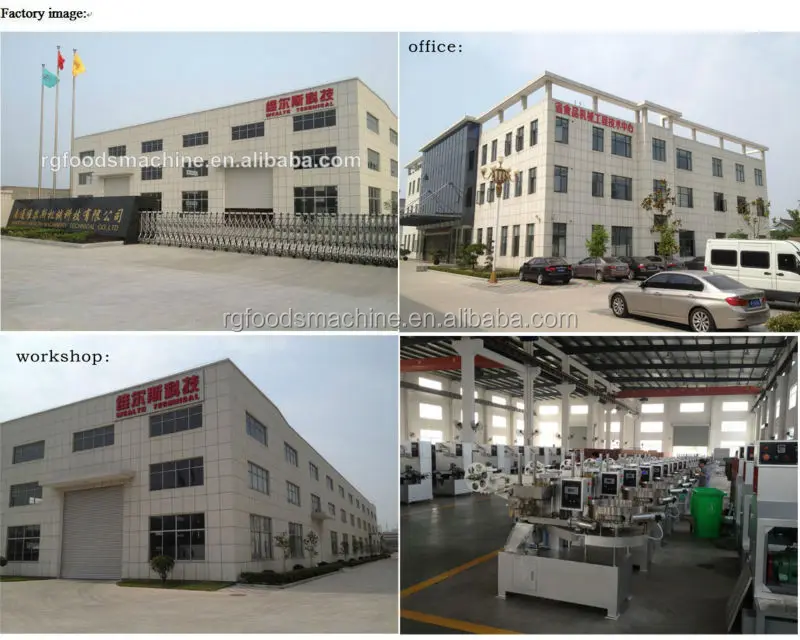

Company Information

 Rugao packaging & foodstuff machinery co.,ltd is found in 1980s, which is specialize in producing complete sets of confection product lines for more than 30 years. We are the standing number of CFPMA and the high technical company of Jiangsu Province. Our RESEARCHER & DEVELOPMENT CENTER has devote to complete sets toffee line, hard candy line, bubble gum line, chewing gum line, chocolate line, etc. our products have been exported to Southeast Asia, Middle East, EU, Americas and have enjoyed a high reputation there.




Packaging & Shipping

.jpg

More information pls feel free to contact with me!
